Tirex - 60 KW DC Chargers

Tirex - 60 KW DC Chargers

DC Chargers – Available in 30kW ideal for 4-wheelers. These high-power chargers offer fast, reliable, and eco-friendly charging, making them perfect for commercial and fleet operations
Warranty : 1 Year
Brand : Tirex
Note : Transportation at actuals
(GST Included)
Add to cart
Buy now
Add to wishlist
Price
₹ 6,22,908.81 ₹ 7,66,657.00 ​

Contact Us

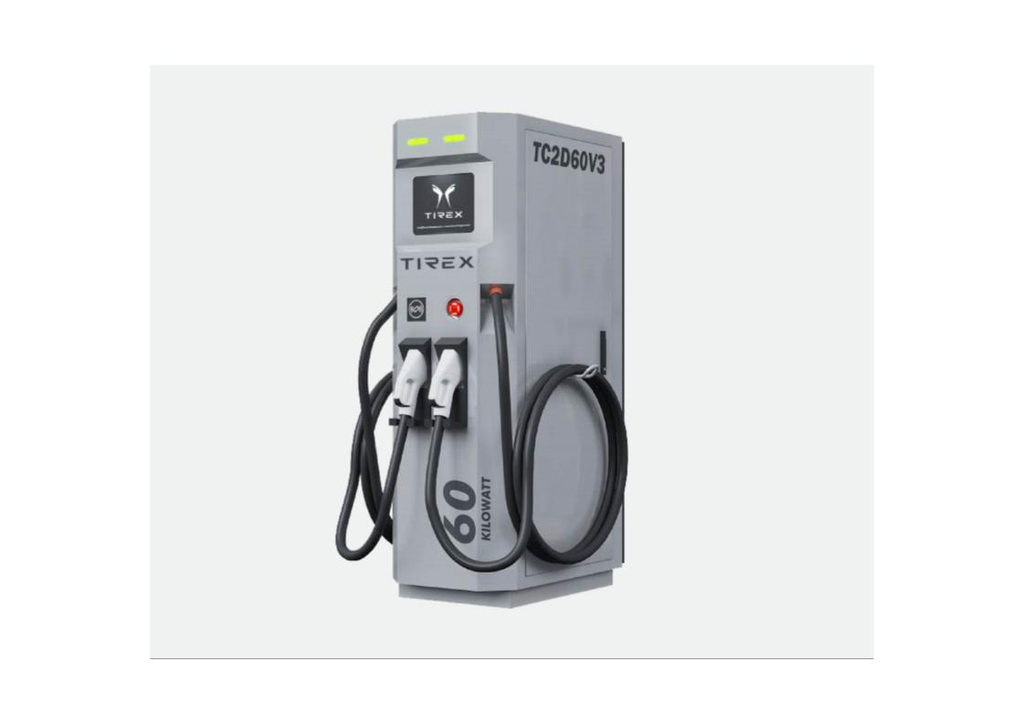

Tirex 60 kW DC Fast Charger

Powered by dual 30kW modules and dynamic power delivery, this ground-mounted station is the perfect high-speed charging solution for commercial fleets and fast-transit locations.

Electrical
Maximum Output Power
60 kW
Input Supply
3 Phase 4 Wire AC Supply
Input Supply Rating
3 Phase 380 - 450 VAC
Nominal Input Power
63 kVA
Input Frequency
50 Hz or 60 Hz
Output Voltage Per Gun
150 - 1000 VDC
Max Current Per Gun
150 A
Efficiency
Over 94% at Full Load
Power Factor
Over 0.98 at Nominal Load
Power Modules
2 Modules (30 kW Capacity Each)
Interface & Connectivity
Gun Configuration
Dual CCS2
Charging Cable Length
5 Meters
User Interface
10.4 Inch Full Colored Touch Screen
CMS Protocol
OCPP 1.6J
EV Communication
ISO 15118 and DIN SPEC 70121
Network Connection
3G/4G Sim Card, Ethernet
RFID Authentication
MIFARE ISO 14443 Type A
Environmental
Cooling System
Forced Air Cooled (Cabinet & Modules)
Operating Temperature
-25°C to 60°C
Storage Temperature
-40°C to 70°C
Max Operating Altitude
2000 Meters
Mechanical & Safety
Protection Rating
IP 54 / IK 10
Mounting Type
Ground
Dimensions (Foot Print)
441 x 631 x 1550 mm
Dimensions (Max Points)
791 x 746 x 1550 mm
Short Circuit Rating
10 kA
Metering
Grid Responsive Metering
Safety Systems
Under Voltage, Over Voltage, Over Current, Single Phasing, Earth Leakage, Over Temperature, Surge Protection

Advanced Performance & Reliability

  • Engineered for high uptime and minimal maintenance
  • Perfect choice for Charging Point Operators (CPOs)
  • Ideal for Highways and Key Transit Routes
  • Reliable design integrated with all leading CMS platforms
  • Secure Linux based OS for enhanced cybersecurity and performance
DC Fast Charger
