Tirex - DC Chargers(30/60/120/180/240KW)

Tirex - DC Chargers(30/60/120/180/240KW)

DC Chargers – Available in 30kW, 60kW, 120kW, and 240kW capacities, ideal for 4-wheelers, buses, and trucks. These high-power chargers offer fast, reliable, and eco-friendly charging, making them perfect for commercial and fleet operations
Warranty : 1 Year
Brand : Tirex
Note : Transportation at actuals
(GST Included)
  • DC EV Chargers
Add to cart
Buy now
Add to wishlist
Price
₹ 4,28,571.34 ₹ 6,66,657.00 ​

Contact Us
Technical Specifications
Power Output Options
30kW / 60kW / 120kW / 180kW / 240kW
Input Supply
3 Phase, 5-Wire AC (420V ±10%, 50Hz)
Output Voltage Range
150V - 1000V DC
Max Current Per Gun
Up to 250A
Connector Options
Single CCS2 / Dual CCS2 / Dual GB/T
Efficiency
Over 95% Peak
User Interface
10.4-Inch Full-Color Touch Screen
Communication Protocol
OCPP 1.6J (Upgradable to 2.0)
Network Connectivity
3G/4G Sim Card, Ethernet, Wi-Fi
Authentication
RFID (MIFARE Type A), Mobile App
Charging Cable Length
5 Meters (Standard) / 8 Meters (Optional)
Enclosure Protection
IP55 Rating / IK10 Impact Resistance
Operating Temperature
Negative 25°C to 70°C
Cooling System
Forced Air Cooled

Compare Tirex DC Models

From retail charging to ultra-fast highway transit hubs, find the exact capacity requirement for your infrastructure.

Specification 30 kW 60 kW 120 kW 180 kW 240 kW
Total Power Output 30 kW 60 kW 120 kW 180 kW 240 kW
Connector Guns Single (1) Dual (2) Dual (2) Dual (2) Dual (2)
Connector Type CCS2 CCS2 / GB/T CCS2 / GB/T CCS2 / GB/T CCS2 / GB/T
Simultaneous Charging No Yes (Dynamic) Yes (Dynamic) Yes (Dynamic) Yes (Dynamic)
Max Output Voltage 1000V DC 1000V DC 1000V DC 1000V DC 1000V DC
Max Current (Per Gun) Up to 100A Up to 150A Up to 200A Up to 250A Up to 250A
Input Supply 3 Phase, 5-Wire AC Supply (420V ±10%, 50Hz)
Ideal Application Retail / Small Fleet Fast Transit / Fleets Highway Public Hubs Heavy Commercial Ultra-Fast Transit

Advanced Performance & Reliability

  • Engineered for high uptime and minimal maintenance
  • Perfect choice for Charging Point Operators (CPOs)
  • Ideal for Highways and Key Transit Routes
  • Reliable design integrated with all leading CMS platforms
  • Secure Linux based OS for enhanced cybersecurity and performance

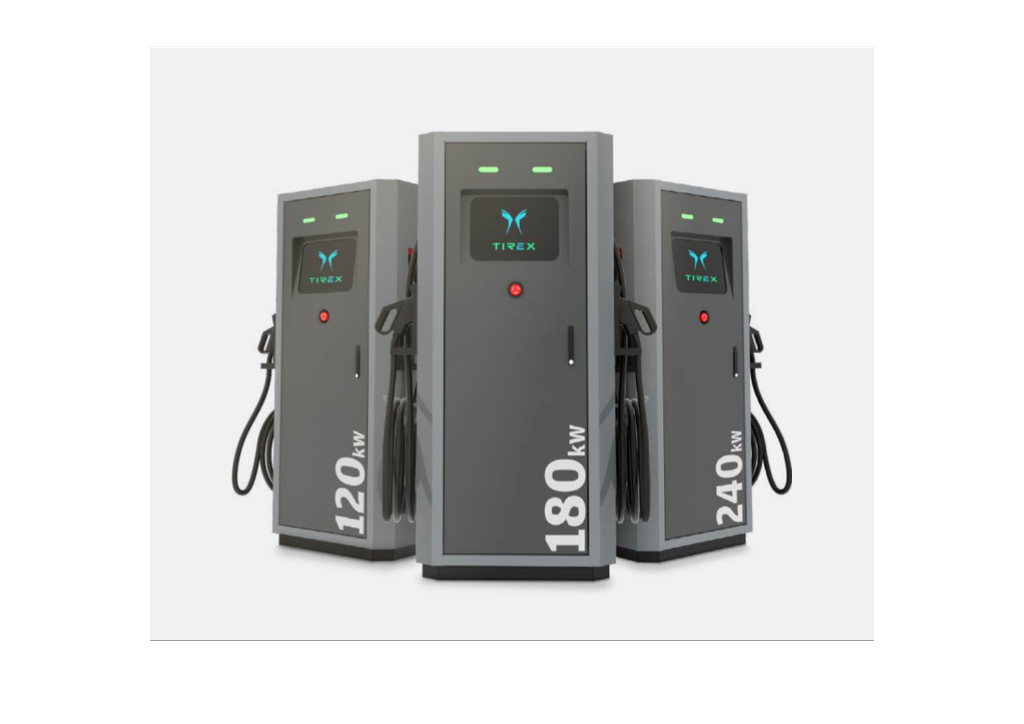

DC Fast Charger
