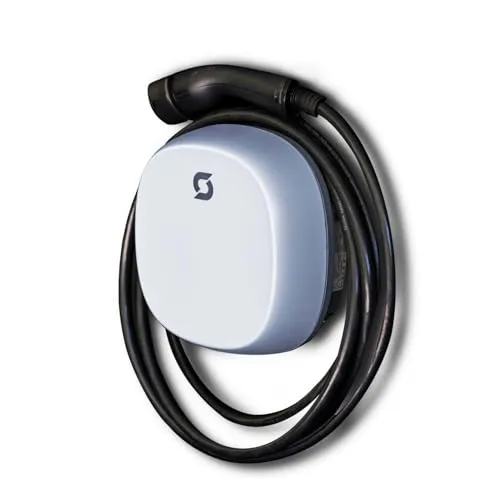

Exicom 22KW AC Charger

Exicom 22KW AC Charger

Spin home chargers offer you complete convenience and full control over your EV charging. Install a charger at home or carry one in the car with you – whatever you choose, you’re in charge.

Add to cart
Buy now
Add to wishlist
Price
₹ 47,991.97 ₹ 51,990.00 ​

Contact Us

Advanced Specifications

Comprehensive details for power, connectivity, and safety.

Power Output
Charging Power
7.4 kW (1-ph) / 11kW (3-ph) / 22 kW (3-ph)
AC Output
150 - 270 Vac (1-ph) / 340 - 460 Vac (3-ph)
Max AC Output Current
32 A (7.4 kW / 22 kW) | 16 A (11 kW)
Connection Point
IEC 62196-2 Type-2 (Mode 3)
Mains Input
Input Voltage (Nominal)
220-240 VAC (1-ph) / 380-415 Vac (3-ph)
AC Wiring
1-ph (L1, N, PE) / 3-ph (L1, L2, L3, N, PE)
Input Frequency
50 / 60 Hz (Range: 45 - 65 Hz)
Standby Power
Under 10 W
3-ph Use on 1-ph Supply
Yes (22kW derates to 7.4kW / 11kW derates to 3.6kW)
Leakage Current
Under 3.5 mA
Protection & Safety
Residual Current
Integrated 6mA DC + 30mA AC
Di-electric Strength
4,000 Vac (Common) / 2,500 Vac (Differential)
Over Voltage Category
Category III
Other Protections
Over Current, Under/Over Voltage, Over Temp
Smart Features & Connectivity
User Authentication
Auto start, Mobile App, or 3rd Party CMS
Connectivity Options
Bluetooth, Internet via Wi-Fi
Communication Protocol
OCPP V 1.6 J (JSON)
Smart Home Integration
Amazon Alexa, Google Home
Dynamic Load Mgmt.
Load Curtailment, Solar Export Control
Software Updates
OTA (Over The Air)

Choose Your Power

Compare our Exicom chargers to find the perfect match for your daily driving needs and home electrical setup.

7.4 kW AC

Perfect for standard overnight charging.

View Details
  • Charging Power 7.4 kW
  • Supply Wiring Single Phase
  • Max Current 32 A
  • Voltage Range 150 - 270 Vac
  • Connector Type-2
Current Selection

22 kW AC

Maximum power for rapid home charging.

Buy Now
  • Charging Power 22 kW
  • Supply Wiring Three Phase
  • Max Current 32 A
  • Voltage Range 340 - 460 Vac
  • Connector Type-2

Why Exicom?.

Warranty

Comprehensive extended warranty and service plans provide complete peace of mind.

Convenience

Plug in right as you get home. Start charging immediately, or schedule for later.

Support

We're here to give you best-in-class support so your chargers are up and running every time you need them.

Everything you might be asking for

  • Our most compact home charger
  • Dynamic load management and sharing
  • Integrated 6mA DC + 30mA AC ground fault protection RCD
  • Advanced charge scheduling
  • IP54 rating water resistant
  • Fully operable up to 55°C
  • Type 2 plug
